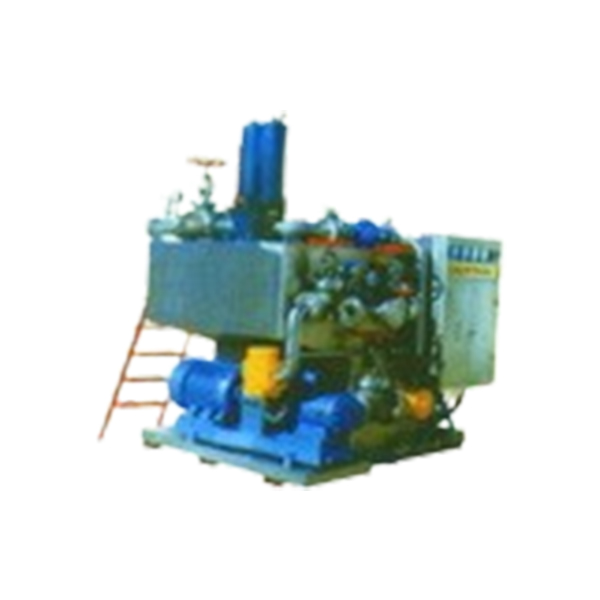

液壓投油管路清洗泵站由泄油柜、循環柜、駁油集油系統及液壓回路、電加熱溫控系統、 電控箱、管路等組成。用于船舶投油、集油、管路清洗等。
Pump device for hydraulic p~pes f，ushing consists of drainage tank，cycle oil tank, oiling and collectionsyslem．electric-heater and temperatut-contrcol system，electric-control box．pipes and so on.It can be used for oiling.oil collection and flushing within ship's pipes etc.
1電控箱 electric control box | 12三通實驗閥 three way test valve |
2螺桿泵及電機 screw pump and electric | 13溢流閥 overflow valve |
3吸油濾器 oil filter | 14人孔蓋 manhole cover |
4單向閥 check valve | 15油箱箱體 oil box body |
5壓力表 pressure guage | 16空氣濾清器 air cleaner |
6球閥 ball valve | 17油位計 oil level |
7流量計 flux scale | 18吊耳 lifting eye |
8壓力式溫度計 pressure type | 19電加熱器 electric-heater |
9雙聯粗濾器 duplex oil filter | 20放泄螺塞 drain plug |
10青銅止回閥 bronze check valve | 21槽鋼 channel steel |
11溫度控制器 temperature controller |
